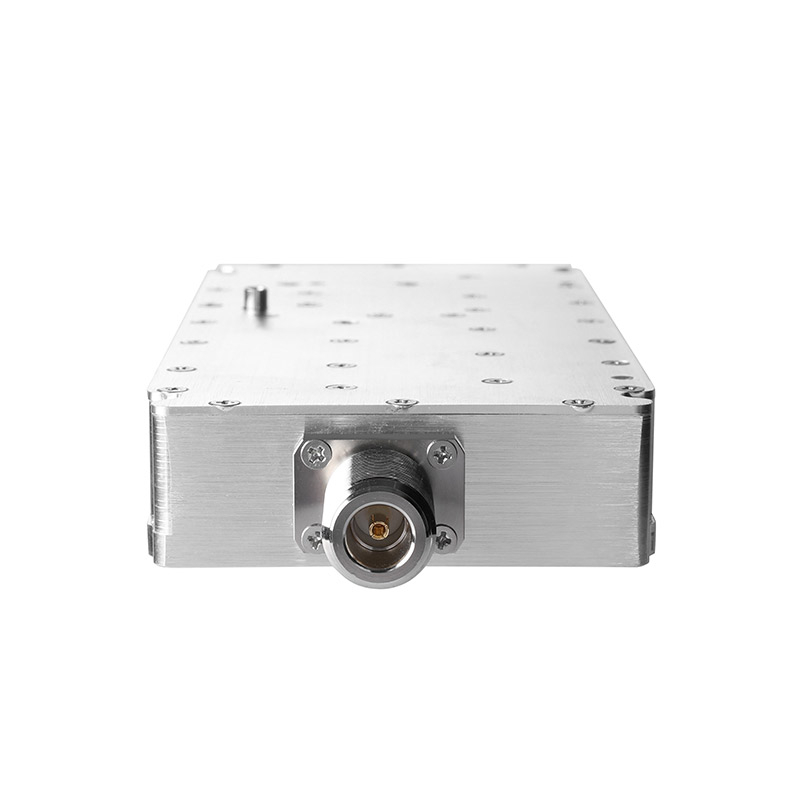

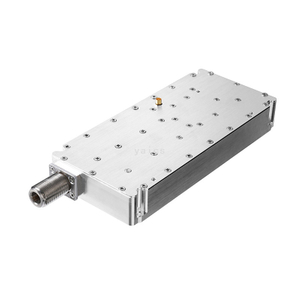

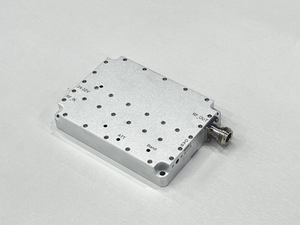

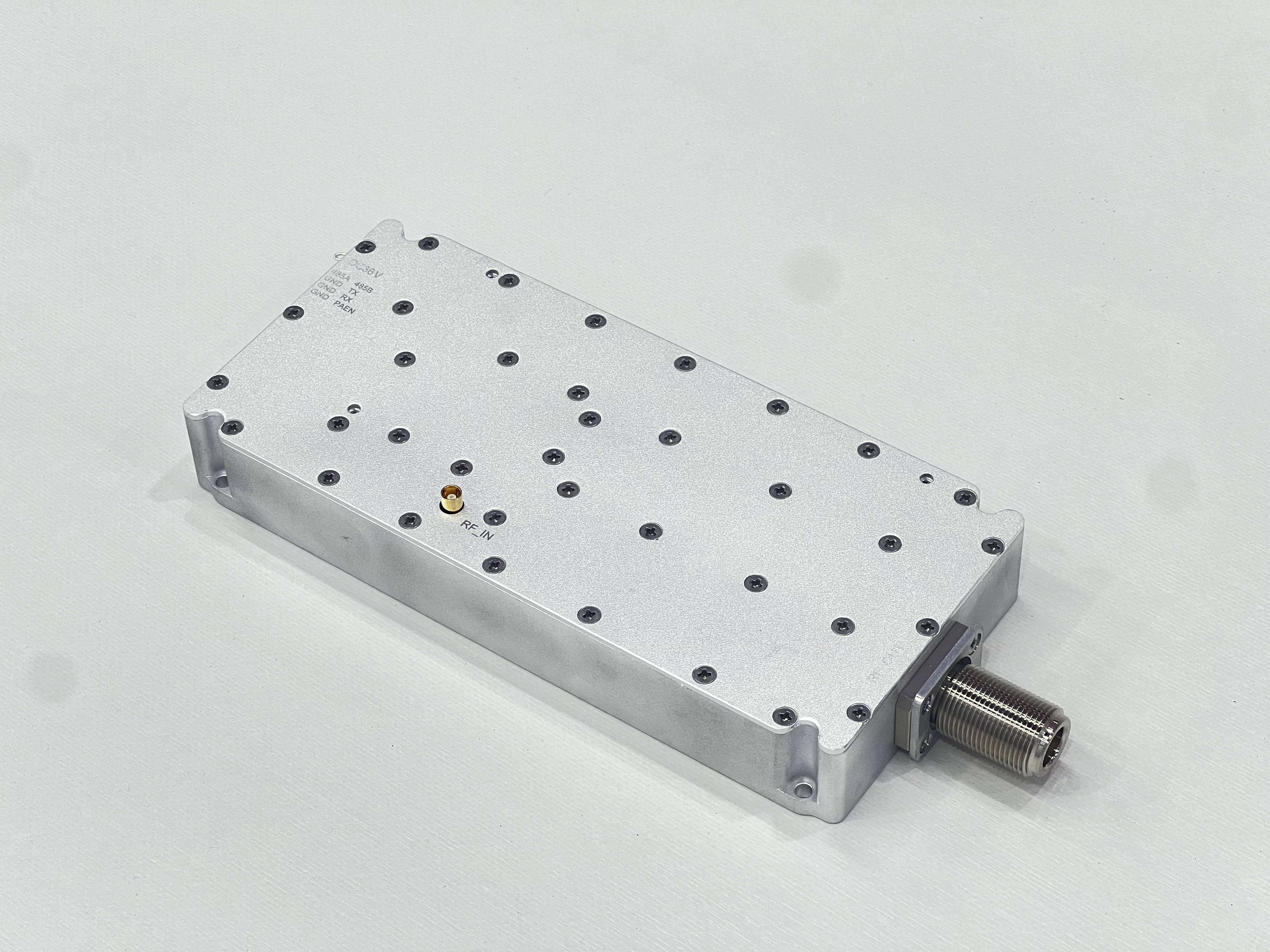

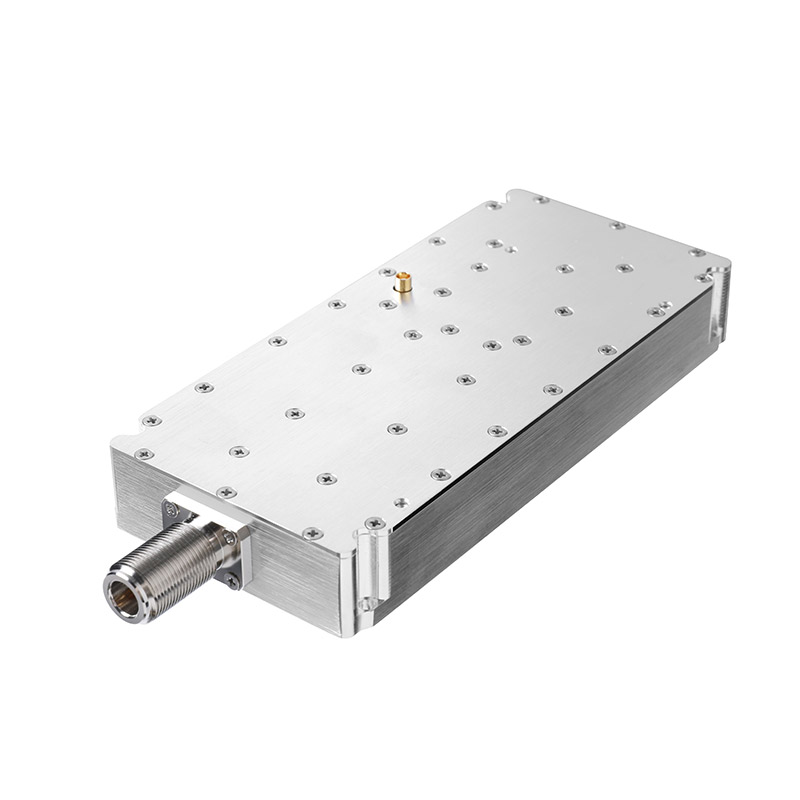

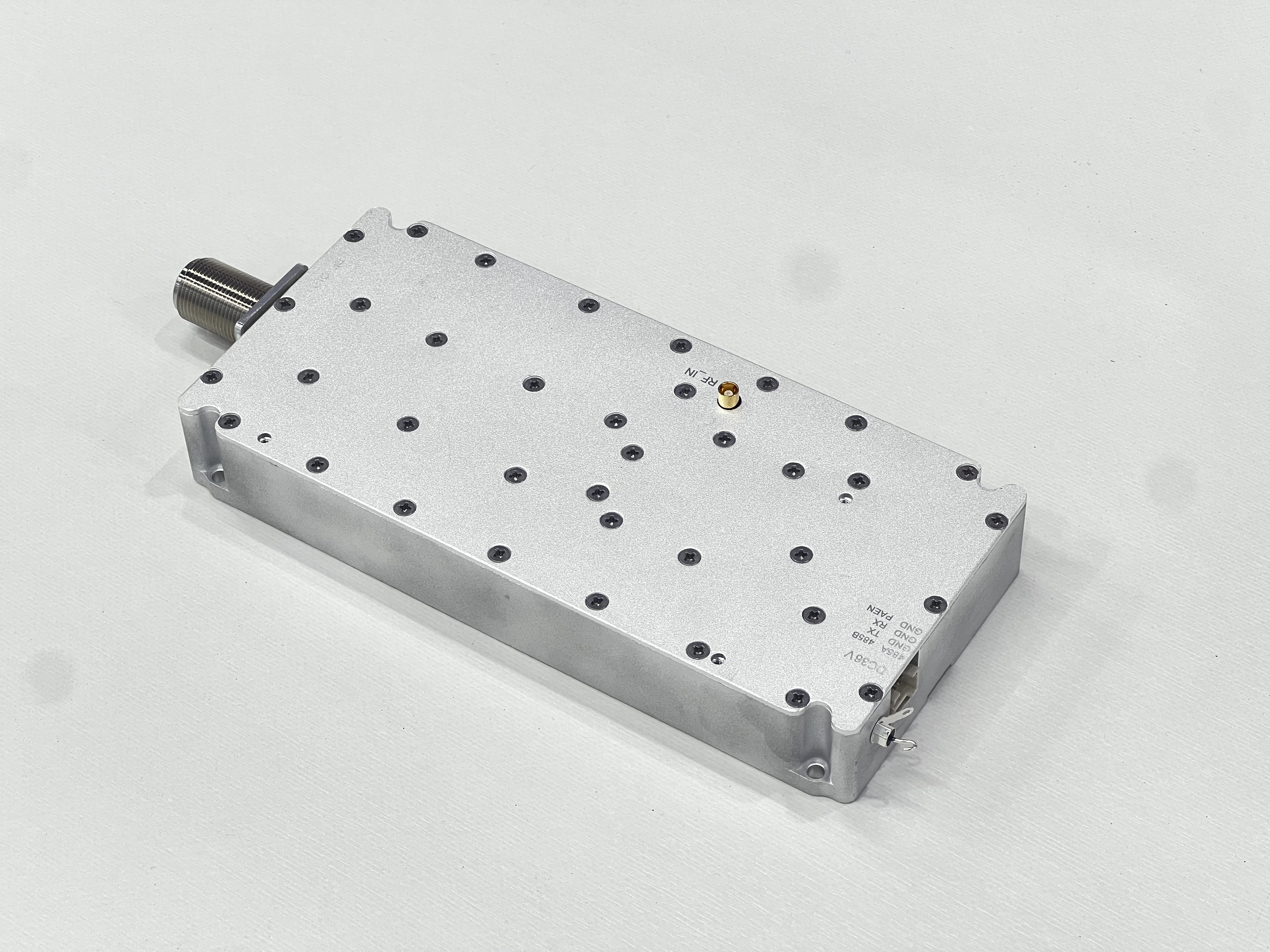

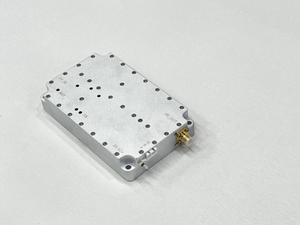

50W Broadband Amplifier Module

Overview:
This high-performance 300MHz-2500MHz broadband power amplifier module is specifically designed for counter-drone (C-UAS) systems, delivering 50W/200W RF output power to effectively disrupt unauthorized drones across multiple frequency bands. Engineered for military, border security, and critical infrastructure protection, it serves as the core component in electronic warfare (EW) and drone neutralization systems.

Key Features & Benefits:

1. Broad-Spectrum Jamming

• Covers GNSS (GPS/GLONASS, 1.2-1.6GHz), ISM bands (2.4/5.8GHz), and proprietary drone control links (300-900MHz), ensuring compatibility with 95% of commercial and tactical drones (e.g., DJI, Autel, military UAVs).

2. High-Power Suppression

• Short-range (500m~1km) handheld/jammer gun applications.

• Long-range (3~5km) vehicle-mounted/fixed-site defense systems.

• 50W/200W configurable output enables:

3. Military-Grade Reliability

• Operates in extreme conditions (-25℃ to 65℃) with built-in temperature/current/voltage monitoring and fault alerts.

• Supports 24/7 continuous duty (liquid-cooled version optional for 200W+ models).

4. Smart Integration Ready

• TTL/RS485 control interfaces for seamless integration with radar, AI threat analysis, and multi-module synchronization.

• Customizable gain (50dB±3dB) to match system requirements.

Typical Applications:

• Military/Government: Neutralize hostile drones in combat zones or sensitive airspace.

• Critical Infrastructure: Protect airports, power plants, and oil refineries from surveillance/sabotage.

• VIP Security: Mobile jamming for convoys or high-profile events.

Compliance:

• Meets FCC Part 15 (civilian) and MIL-STD-461 (military) EMC standards.

Why Choose This Module?
▶ Future-Proof Design: Covers emerging drone frequencies (e.g., LoRa, 5G-based control).
▶ Modular Scalability: Stackable for swarm defense (100W→1kW systems).
▶ Low SWaP (Size, Weight, Power): Compact 19" rack/embedded form factors.

Technical Support: OEM/ODM services available for waveform optimization, cooling solutions, and multi-band configurations.
