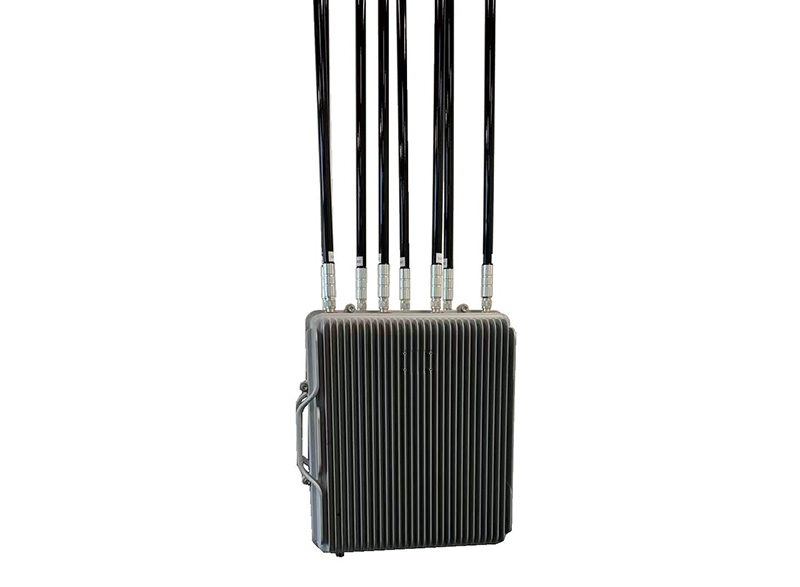

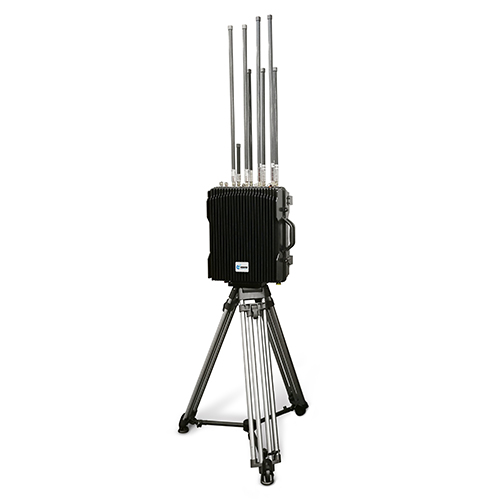

The LX-WDS Drone Detection and Drone Defense System （All-Directional Drone Defense System）, which is used for drone detection, identification and jamming. The system integrates a variety of technologies such as collaborative spectrum sensing and deep neural network. Through radio detection technology, the system uses the received Drone characteristic signals, big data processing, artificial intelligence and machine learning to achieve effective detection, identification and orientation tracking of low-altitude Drones in defense areas. Using radio jamming and blocking technology, the intrusion Drone can be effectively controlled. The system realizes low altitude three-dimensional protection within the radius of the defense area greater than 3000 meters, and has been widely used in government agencies, prison guards, aviation airports, military restricted,water utilities, railways, major activities and more areas, . Drone detection and countermeasures system is composed of intelligent spectrum detection and radio interference integrated host and operating terminal. It is easy to install, simple to use, and flexible to configure in various scenarios.
Key Features of LX-WDS Drone Detection and Drone Defense System
The LX-WDS system provides passive detection of drones within the protected area, distinguishes between friendly and hostile drones, and delivers precise countermeasures. Through CRPC message-level protocol parsing, it identifies the target drone and operator's real-time location, while also tracking the drone's flight path. This makes it ideal for securing environments such as airports, prisons, critical industrial facilities, military installations, public security borders, stadiums, and major events.
Product Features
| Feature | Description |
|---|
| Advanced Technology | The device uses CRPC radio protocol analysis to decode drone control signals, providing accurate early warnings of drone signal characteristics. It ensures no false alarms or missed detections, making it highly reliable for counter-terrorism operations. Compared to radar and spectrum analysis, it offers significant advantages. |
| Unmanned Operation | The system supports unattended operation with automatic detection and countermeasures, functioning 24/7. It can simultaneously detect and repel multiple drones across different frequencies and types. |
| Proactive Early Warning | Capable of detecting and repelling drones at distances of no less than 3 km, covering the entire area. It can detect and identify drone remote controllers as soon as they power on, preventing takeoff. |
| Accurate Positioning | Equipped with radar scanning, the system can precisely locate flying unauthorized drones. |
| Friend or Foe Identification | Utilizing software-defined radio reverse engineering and protocol analysis, it accurately identifies drone models and device IDs, managing a blacklist/whitelist and implementing "friend or foe" identification. |
| Passive Monitoring | With omnidirectional receiving antennas, the system passively monitors the radio environment within the protected area, providing non-intrusive, radiation-free, and interference-free coverage. |
| Flight Path Tracking | Capable of tracking multiple targets, it displays the flight paths of several drones simultaneously in different colors. |
| Operator Positioning | Accurately locates the drone operator (remote controller) and indicates the corresponding position. |
Technical Specifications
| Parameter | Specification |
|---|
| Detection Frequency | 2.4G/5.8G |
| Continuous Operation | 24/7 |
| Protection Level | IP65 |
| Detection Sensitivity | Better than -95dBm (25kHz) |
| Detection Area | 360° full coverage |
| Dynamic Range | 70dBm |
| Communication Modulation | FM, 2FSK, 4FSK, BPSK, OFDM |
| Frequency Accuracy | ≤1KHz (120MHz bandwidth) |
| Operating Temperature | -40℃~+70℃ |
| Operating Mode | Full-spectrum scanning: panoramic scan + channel scan |
| Power Supply | AC220V ± 20V |
| Detection Range | ≥3km |
| Interception Range | ≥2km |
Application Scenarios
The LX-WDS All-Directional Drone Detection And Drone Defense System is applicable in various sectors such as public security, prisons, detention centers, petrochemical industries, water utilities, railways, and more. By providing robust low-altitude security, it ensures the protection of sensitive areas from unauthorized drone activities.
