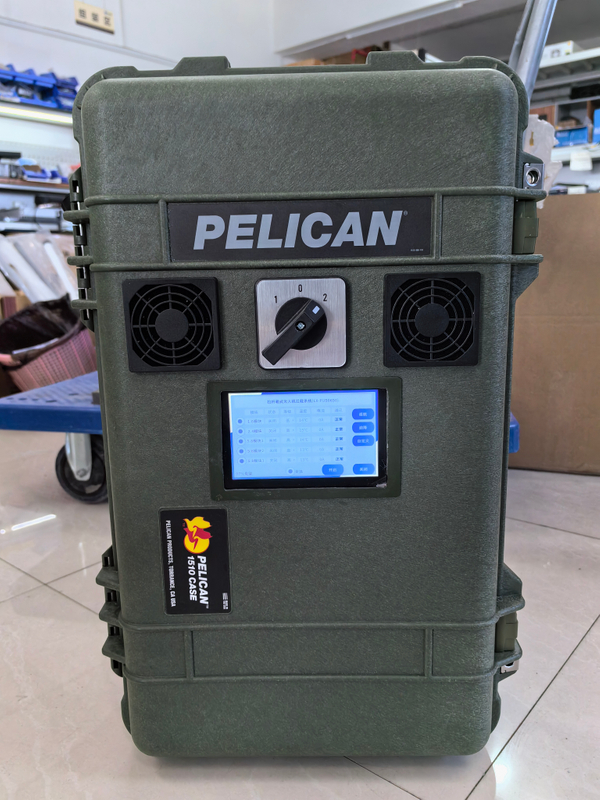

PUS0650 Drone Interception System (Portable) is a high-power drone interception system independently developed by YXIC. This device effectively disrupts the frequencies used by drones, interfering with their uplink and downlink signal transmissions. As a result, the drone loses control, video and image transmissions fail, and the drone is forced to hover or land, completely severing the connection between the drone and its remote controller or ground station. It is especially suitable for use in prisons, detention centers, rehabilitation facilities, confidential institutions, and military units.
Product Features:
Small size, lightweight, and portable for single-person operation.
Accurate frequency jamming, long-distance interception, and precise targeting.
Imported chips ensure high quality and stability.
Built-in high-capacity battery ensures long standby time.
Portable trolley design enhances mobility, unaffected by terrain or environment.
Simple operation: just power on and start working, no professional skills required.
Product Specifications:
Specification | Parameter |
Interception Method | Forced return, forced landing |
Interception Channels | Four channels (customizable) |
RF Power | 355W |
Unique Technology | Fast frequency sweep, frequency correction, multi-level monitoring, heat pipe cooling, temperature-controlled noise reduction |
Power Consumption | <250W |
Antenna Interface | N-type female connector |
Log-Periodic Antenna Parameters | Horizontal beamwidth: 75", Vertical beamwidth: 55", Gain: 9dBi |
Power Supply | Built-in lithium battery, AC external power |
Battery | 320WH power lithium battery |
Charging Interface | SP13 waterproof aviation plug |
AC Input | SF12 quick-connect waterproof aviation plug |
Cooling System | Module: heat pipe cooler, Environment: PWM temperature-controlled fan |
Display Method | LCD screen |
Alarm Indicators | High temperature, SWR, cooling system abnormality, low power, low battery |
Case | PELICAN 1510 safety case |
Color | Military green |
